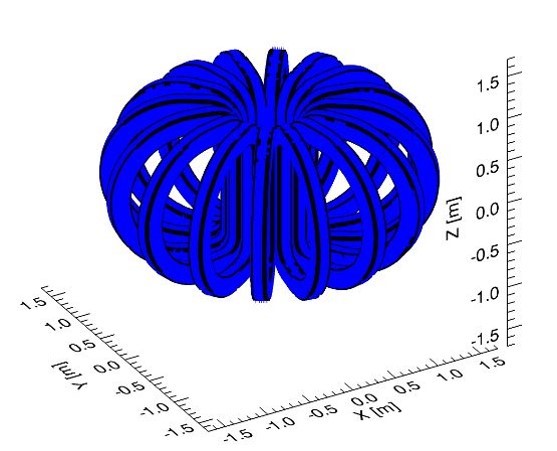

Toroidal field coils
- 16 TF coils with 7 turns each and current up to 187.5 kA
- 9 T on the High Field Side
- Toroidal ripple similar to ITER (δ < 0.5%)
- Total force acting on one TF coil is 6.5 MN (650 tonnes)
- TF coils resistance 0.65 mΩ at LN2 temperature and self-inductance 4.65 mH
Poloidal field coils
- Possibility to create plasma with ITER-like shape

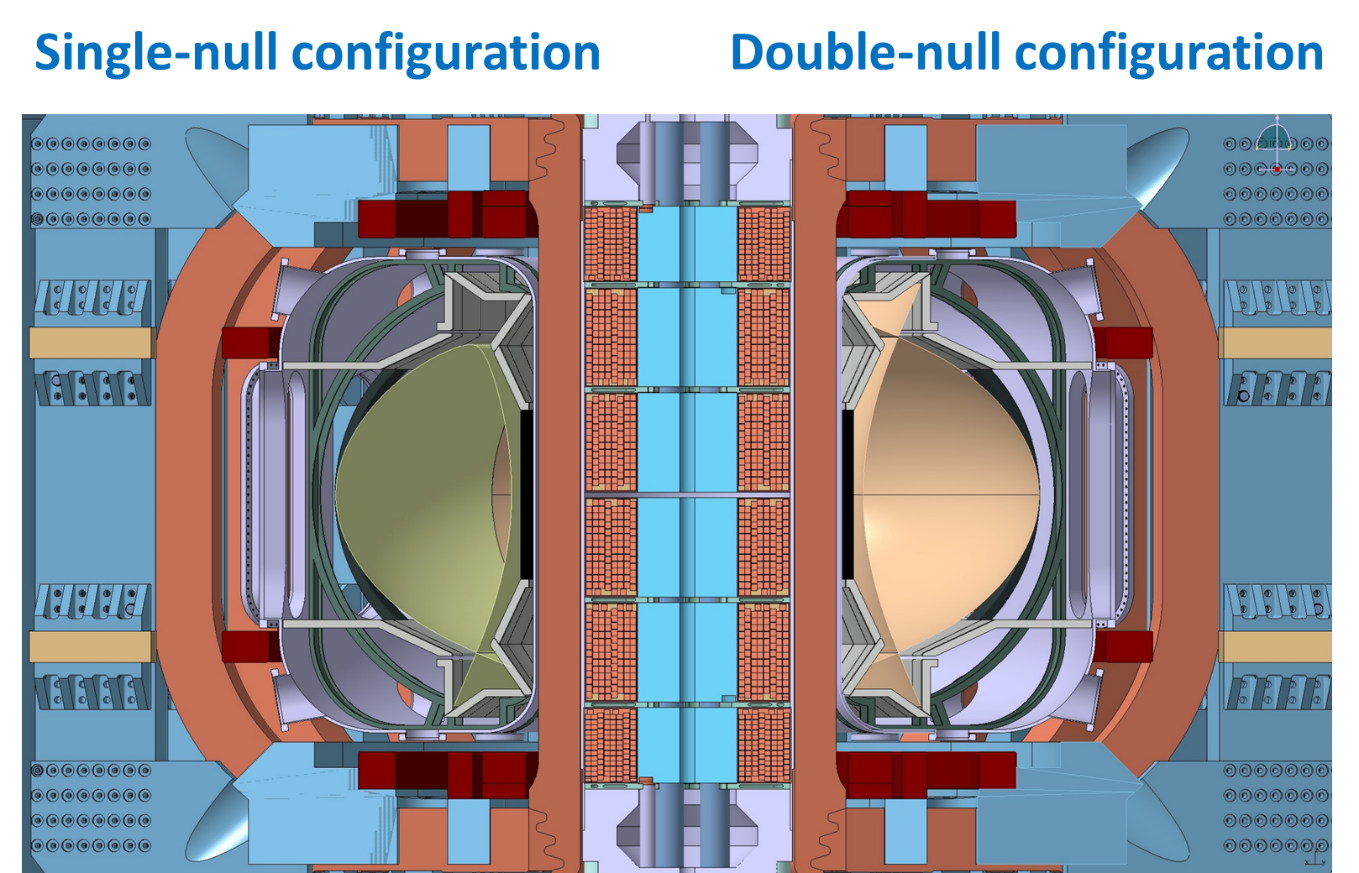

- Flexibility to create different plasma shapes including double-null and snowflake
